Mybatis-Plus 开发提速器,快来了解一下吧

原创声明:本人所发内容及涉及源码,均为亲手所撸,如总结内容有误,欢迎指出

唠嗑部分

关于在实际开发中数据库表的实体类、mapper接口、映射文件等等,我想没有人自己写吧,毕竟没有任何技术含量。

现在常用的数据库逆向工程有很多,如mybatis插件、idea插件、mybatis-plus等等,但是今天小白给大家带来的是Web UI的方式。

mybatis-plus-generator-ui提供交互式的Web UI用于生成兼容mybatis-plus框架的相关功能代码

包括Entity,Mapper,Mapper.xml,Service,Controller等 ,可以自定义模板以及各类输出参数,也可通过SQL查询语句直接生成代码。

开源地址: https://github.com/davidfantasy/mybatis-plus-generator-ui

如何使用

创建工程&导入依赖

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>mybatis-plus-boot-starter</artifactId>
        <version>3.0.5</version>
    </dependency>
    <dependency>
        <groupId>com.github.davidfantasy</groupId>
        <artifactId>mybatis-plus-generator-ui</artifactId>
        <version>2.0.0</version>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.47</version>
    </dependency>
</dependencies>

mybatis-plus-generator-ui的依赖,cope只需要写test就可以了,我们在test运行

在项目的test目录新建一个启动类,代码示例如下:

/**
 * @Project: mybatis-plus-generator-ui-demo
 * @Author: cxs2014501@163.com
 * @Create: 2023/2/24 14:21
 * @Description:
 **/
public class GeberatorUIServer {
    public static void main(String[] args) {
        GeneratorConfig config = GeneratorConfig.builder().jdbcUrl("jdbc:mysql://10.10.10.10:3306/mybatis-plus-generator-ui-demo")
                .userName("root")
                .password("root")
                .driverClassName("com.mysql.jdbc.Driver")
                //数据库schema,POSTGRE_SQL,ORACLE,DB2类型的数据库需要指定
                .schemaName("myBusiness")
                //如果需要修改entity及其属性的命名规则,以及自定义各类生成文件的命名规则,可自定义一个NameConverter实例,覆盖相应的名称转换方法,详细可查看该接口的说明:
                .nameConverter(new NameConverter() {
                    /**
                     * 自定义Service类文件的名称规则
                     */
                    @Override
                    public String serviceNameConvert(String tableName) {
                        return this.entityNameConvert(tableName) + "Service";
                    }
​
                    /**
                     * 自定义Controller类文件的名称规则
                     */
                    @Override
                    public String controllerNameConvert(String tableName) {
                        return this.entityNameConvert(tableName) + "Controller";
                    }
                })
                //所有生成的java文件的父包名,后续也可单独在界面上设置
                .basePackage("com.cxs")
                .port(8086)
                .build();
        MybatisPlusToolsApplication.run(config);
    }
}

GeneratorConfig还包含一些基本的配置参数以及各个可扩展的接口,比如自定义模板参数,具体的说明可查看源码注释。

运行该启动类,启动一个Generator Server。然后访问http://localhost:8068即可进入到管理界面。

Mybatis-Plus 开发提速器,快来了解一下吧

访问:localhost:8086

Mybatis-Plus 开发提速器,快来了解一下吧

输出文件的配置 :内置Entity,Mapper,Service,Controller等6种类型代码的模板配置,可以上传模板进行替换,并修改各类参数,配置参数已经按照影响的文件类型重新进行了分类,并加入了部分文本说明;也可以自行添加其它类型的自定义输出文件。所有的配置项都会按照项目包名进行保存,只需一次性设置就可以了。

Mybatis-Plus 开发提速器,快来了解一下吧

Mybatis-Plus 开发提速器,快来了解一下吧

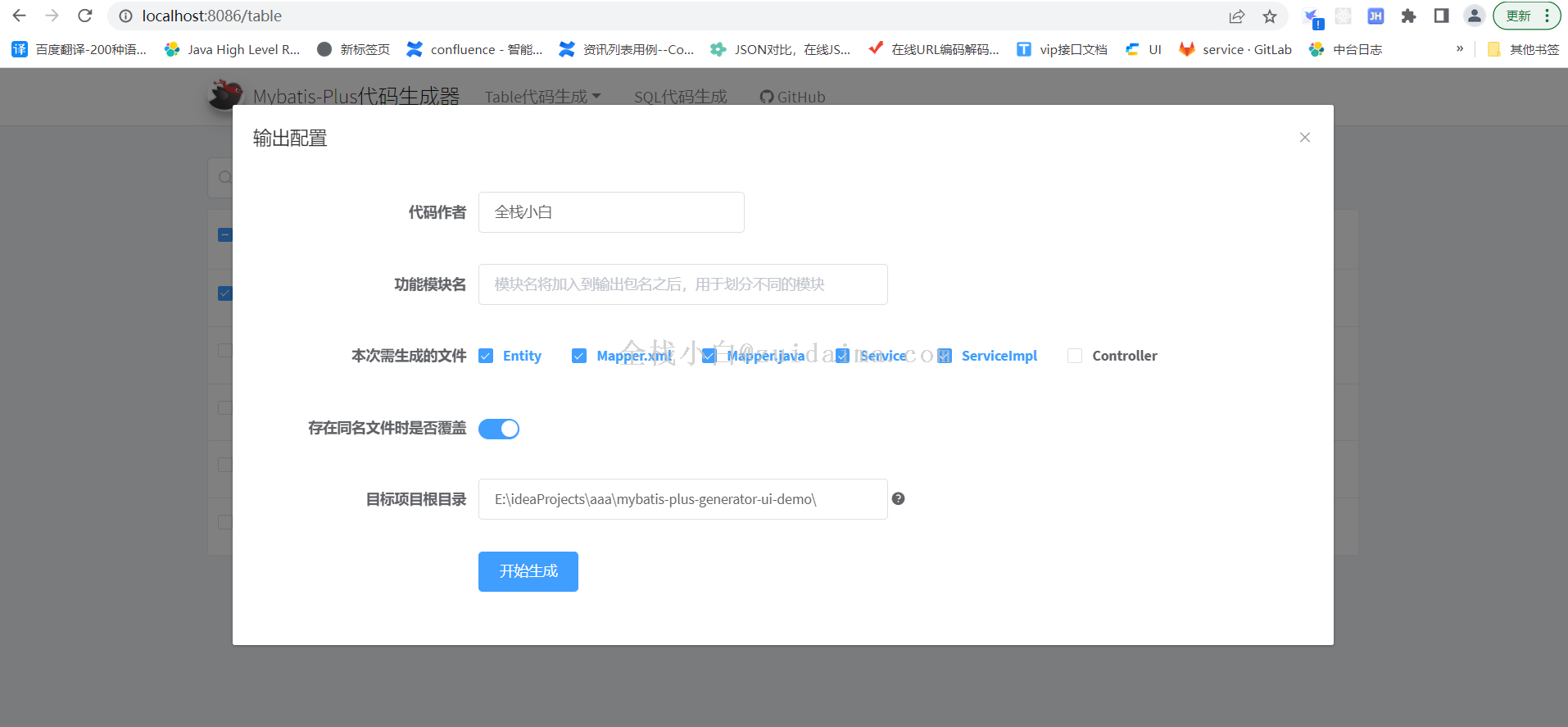

选择一张表,点击生成,可以设置作者信息、是否覆盖原文件,生成文件的种类等等

Mybatis-Plus 开发提速器,快来了解一下吧

结果

Mybatis-Plus 开发提速器,快来了解一下吧

你以为就这点嘛,哈哈,还可以支持sql生成,我们来看看

注意:动态参数用''引起来

Mybatis-Plus 开发提速器,快来了解一下吧

填写配置项

Mybatis-Plus 开发提速器,快来了解一下吧

xml配置文件都帮我们生成了,还可以生成复杂的SQL

Mybatis-Plus 开发提速器,快来了解一下吧
